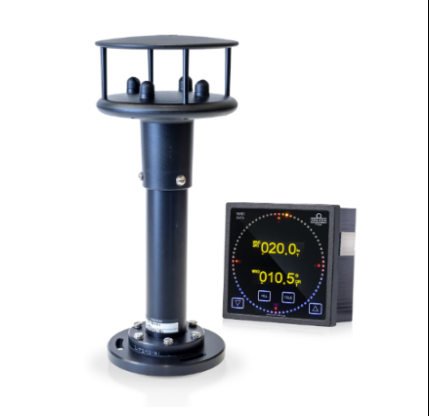

The sensor connects directly to a standard P1249 Walker wind speed and direction indicator, which gives digital displays of relative wind speed and direction via our P293B cable (40mtr as standard).  It is also ideal if you currently have a P296 and wish to upgrade to a P292 masthead, as all you have to do is swap out the mastheads and everything else stays the same.  No alterations to cables or indicators are required.

The sensor converts wind speed and direction into serial digital data which can be displayed on either a digital or analogue wind direction indicator.  The instrument interfaces in NMEA 0183/RS422 to other ship systems using MWV sentence.

The system operates within a wind speed range of up to 120 knots and in temperatures ranging from -35 to + 70 Celcius.

The system also has the option to display true wind speed and direction by utilising the Walker P1066 true wind interface unit.

The Walker 2080Mk2 system fully complies with IEC 60945, IEC 61162-2 and IEC 62288 and although wind systems are not required to be approved, our wind system is covered with a BV certificate
