Tron AIS-SART
From January 1st 2010, after several years of product development and standardization work through international organizations, the Tron AIS SART will be adopted into the GMDSS regulations as an alternative to the Radar-SART.
The unique and innovative feature of the Tron AIS SART is the combination of its physical size and technical capability. The housing of the Tron AIS SART is identical to Jotron´s Radar-SART, type Tron SART20, - that is a total height of 251 mm and a weight of only 450g.
Technically, the Tron AIS SART is based on the following principals; the unit will be programmed from the manufacturer with a unique ID code and receives its position via an internal GPS antenna. This data is combined and transmitted using the international AIS channels (AIS A and AIS B) in the maritime VHF band.
You can download brochures, manuals and type approvals under each product.

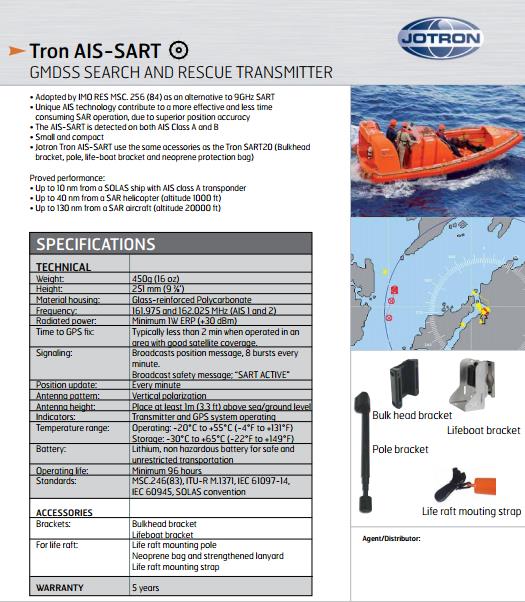

TRON AIS-SART
GMDSS SEARCH AND RESCUE TRANSMITTER
Options:
84845 Lifeboat bracket (pic below)
82900 Pole bracket (pic below)
Spare parts:
82615 Battery, Tron AIS-SART, 5 years maintenance kit
Includes:
Battery unit
82790 O-ring
82957 Label, battery
82989 Label, battery seal
82746 Bulkhead bracket
- Tron AIS-SART gives the exact location, with GPS precision
- Position update - every minute
- 5 years warranty
The Tron AIS-SART is now "Wheel Marked” in accordance with European Council Directive 96/98/EC with latest Commission Directive 2011/75/EU (7th amendment).
Radar SART and the AIS-SART can now both be used as “Search and rescue locating devices” according to IMO SOLAS Amendment in Resolution MSC.256(84) giving the ship owner full freedom to choose either product as required by SOLAS Chapter III, Regulation 2.2.
Proved performance:
- Up to 10 nm from a SOLAS ship with AIS class A transponder
- Up to 40 nm from a SAR helicopter (altitude 1000 ft)
- Up to 130 nm from a SAR aircraft (altitude 20000 ft)
- Unique AIS technology contribute to a more effective and less time
consuming SAR operation, due to superior position accuracy
- The AIS-SART is detected on both AIS Class A and B and AIS Receivers
- Small and compact
- Jotron Tron AIS-SART use the same acessories as the Tron SART20 Bulkhead
bracket, pole, life-boat bracket and neoprene protection bag)
Will be shown on ECDIS or Chart plotters as a RED Circle with a cross inside.
COMPATIBILITY OF LIFE-SAVING APPLIANCES
Clarification to the requirements of the LSA Code regarding transponders
Download document...
Article numbers:
85037 Tron AIS-SART Main unit
Includes:
82746 Wall bracket (pic below)
85355 User manual
