Anschuetz PilotStar NX
Anschuetz PilotStar NX

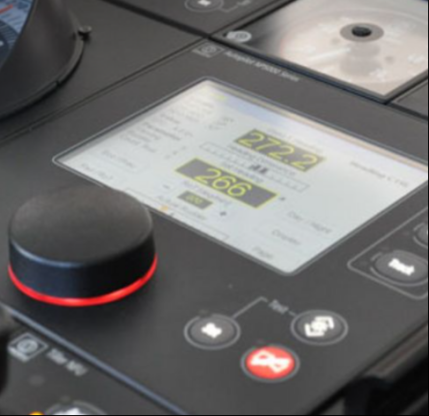

  • ntuitive operation thanks to 7” touch TFT display and large rotary knob for heading changes
  • Graphical user support with heading & rudder plot and track data for perfect adjustment of the autopilot parameters
  • Trim mode and fix turn for workboat applications
  • Manual control of steering gear
  • Connection of NautoSteer AS tiller(s) for the design of compact steering gear control systems
  • Ease of use service features for simple and safe commissioning

Download
  • Product Details
  • Parameter

Modes of operations

Heading and rudder plot
to simplify parameter adjustments
Heading control mode
automatic steering on a predefined heading
NFU/FU manual rudder control
by using the soft buttons or the rotary knob
Track data - graphical and numerical deviation from course over ground
Nav mode - follows set point commands from a planned route
Trim mode - optimized steering performance
for vessels with asymmetrical load

System integration

PilotStar NX is easy to integrate in newbuilt or refit projects. For integrating it into a NautoSteer AS steering gear control system, the PilotStar NX just needs to be connected to the redundant CAN bus. Autopilot control is simply activated by pushing the heading control button. For use in combination with other steering gear control systems or in refits, an interface unit is available. This interface unit provides a multitude of interfaces to the steering gear control system or directly to the steering gear. The heading control system can also be extended with manual controls such as FU tiller, NFU tiller and or handwheel to form a compact steering gear control system.
