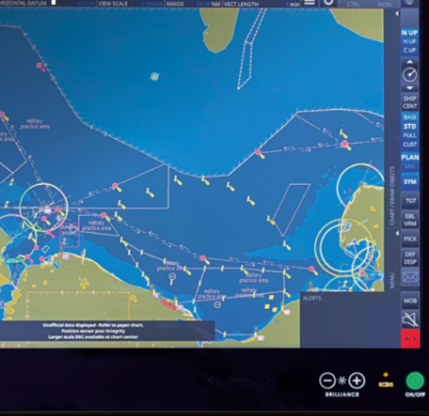

Anschuetz ECDIS NX Compact
Anschuetz ECDIS NX Compact

  • Smart tools for voyage management, such as Wizard based route planning
  • ETA calculation and speed of advance (SOA) for individual waypoints in UTC or local time
  • Graphical editing of routes, supported through intuitive interaction patterns (e.g. drag’n drop)
  • Editable look ahead zones for anticollision, route monitoring and anti-grounding
  • Filtering tools to reduce unnecessary alarms
  • Support of Admiralty Information Overlay (AIO)

Download
  • Product Details
  • Parameter
  • 24" Panel PC with multi-touch (incl. zoom)
  • i7 Quad Core processor, 240 GB SSD, 8 GB RAM
  • Dual power 24 VDC/ 115 & 230 VAC
  • Display resolution 1920x1080
  • 8 x IEC 61162-1 serial phoenix connectors (NMEA)
  • Identical cut out and table mount bracket as ECDIS24
  • Ergonomic laser dektop trackball with scroll wheel, IP 68
  • Mechanical connection kit for EMV-compliant cable strutting
  • USB thumb drive with software installation wizard IEC 61174 Ed. 4 type approved
  • ECDIS NX software (Synapsis Ed. 5.xx)
  • State of the art Windows 10 IoT Enterprise operating system
